Multipurpose telescopic ladder, SERIE BRICO 4
Multipurpose telescopic ladder, SERIE BRICO 4

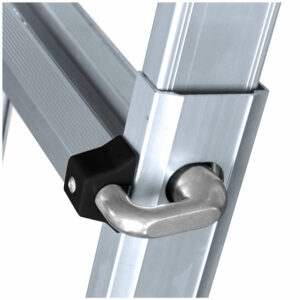

The multipurpose telescopic ladder from the SERIE BRICO 4 stands out for its great versatility, as it can be used in leaning position, as a double-access stepladder and even on uneven ground, allowing stairs or other obstacles to be negotiated with maximum safety. This model, which combines strength, durability and quality, features an aluminium die-cast positioning system that allows the height to be adjusted according to the needs of each task, guaranteeing work with maximum stability, ergonomics and confidence.
Available with three to five steps, this telescopic ladder has a very compact design that makes transport and storage easy and convenient anywhere in the home.
Technical data sheet User and maintenance manual
Effective and safe ladder that allows heights of over 5 metres to be reached
This multipurpose telescopic ladder, highly recommended for home DIY tasks at great heights such as roof repairs or painting walls, features recessed steps with anti-slip ridges spaced 280 mm apart, promoting safer and more comfortable ascent.

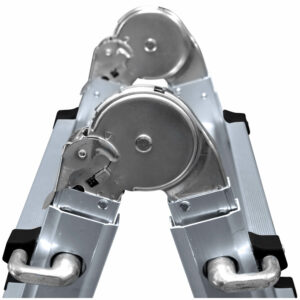

Built with aluminium profiles, it incorporates steel hinges with a locking system that allow the ladder to be opened, closed and configured in different working positions safely. It also features anti-slip PVC feet that prevent involuntary movement on the surface during use and a stabilising base that provides the necessary stability. In accordance with Standard EN 131, the stabilising base is mandatory for all ladders that, in leaning position, exceed three metres in height.
The SERIE BRICO 4 multipurpose telescopic ladder is an effective and safe product that allows a maximum height of up to 5.40 metres to be reached. This model comes with a five-year guarantee against manufacturing defects and can support a maximum total load of 150 kg in accordance with Standard EN 131-4.
| REF | Steps |  |  |  |  |  |  |  |  | KG |
| Folded length | Height in leaning position | Max. working height | Depth | Max. working height | Profiles | Base width | Width with stabilising base | |||
| 3013 | 3 + 3 | 0,93 | 2,30 | 3,30 | 0,51 / 1,01 | 2,45 | 0,20 | 0,47 | - | 8,10 |
| 3014 | 4 + 4 | 1,21 | 3,40, | 4,30 | 0,85 / 1,35 | 3,30 | 0,20 | 0,53 | 0,80 | 10,10 |
| 3015 | 5 + 5 | 1,49 | 4,50 | 5,40 | 1,85 / 2,35 | 3,56 | 0,20 | 0,59 | 0,80 | 12,10 |
