Professional mobile tower, SERIE QUICK TOWER
Professional mobile tower, SERIE QUICK TOWER

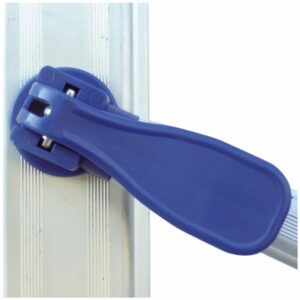

The QUICK TOWER professional mobile tower, designed for periodic use, allows extended maintenance and renovation work to be carried out indoors and outdoors, such as painting façades, light masonry work or installing suspended ceilings. This model, which can be used on uneven ground, stands out for its easy and quick assembly without screws or tools, thanks to its lateral uprights with FAST positioning system.
Made of aluminium, this mobile tower consists of three modules, allowing the user to choose between a two-piece or three-piece tower. Its modular system (A, B, C and foldable base P) allows different configurations, adapting to the needs of each task.
Technical data sheet User and maintenance manual
Mobile tower that is easy and quick to move

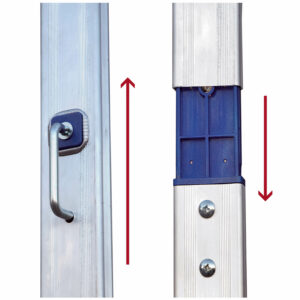

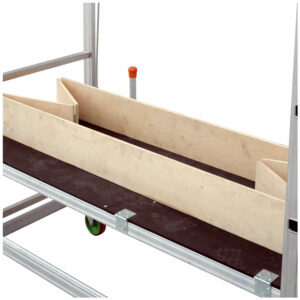

This professional mobile tower features four 125 mm diameter transport wheels with brakes that, in addition to guaranteeing easy and convenient movement, prevent any accidental movement during use. It also has telescopic stabilisers in module B that provide stability for the user, quick anti-opening steel braces and a single-piece foldable base plate.
The SERIE QUICK TOWER features a 141×68 cm phenolic board platform with aluminium die-cast safety hooks that provides a wide base for work at height, as well as the necessary resistance to withstand adverse weather conditions. This model offers the option of incorporating horizontally and vertically adjustable levellers of 55×28 cm, located at the base to support its structure and vary its height.
The SERIE QUICK TOWER professional mobile tower allows a maximum working height of up to 6.90 metres to be reached, comes with a five-year guarantee against manufacturing defects and can support a maximum total load of 200 kg/m² in accordance with Standard EN 1004 Class 3.
| REF | Modules |  |  |  |  |  |  | KG |
| Height | Platform height | Max. working height | Upper length | Upper width | Platform (m) | |||
| 256 | A | 2,05 | 1,00 | 3,00 | 1,55 | 0,75 | 1,41x0,68 | 27,00 |
| 257 | A+B | 4,10 | 2,80 | 4,80 | 1,55 | 0,75 | 1,41x0,68 | 62,00 |
| 258 | A+B+C | 6,20 | 4,90 | 6,90 | 1,55 | 0,75 | 1,41x0,68 | 86,00 |
| 259 | B | - | - | - | - | - | 1,41x0,68 | 35,00 |
| 260 | C | - | - | - | - | - | 1,41x0,68 | 24,00 |
| 266 | P | 2,05 | 1,00 | 3,00 | 1,55 | 0,75 | 1,41x0,68 | 31,00 |
| 267 | P+B | 4,10 | 2,80 | 4,80 | 1,55 | 0,75 | 1,41x0,68 | 66,00 |
| 268 | P+B+C | 6,20 | 4,90 | 6,90 | 1,55 | 0,75 | 1,41x0,68 | 90,00 |
