Multipurpose ladder-scaffold, SERIE 3N1
Multipurpose ladder-scaffold, SERIE 3N1
The multipurpose ladder-scaffold from the SERIE 3N1 is especially recommended for home DIY tasks, such as painting walls or cleaning roof gutters. This model offers great versatility as it can be used in three different positions: as a leaning ladder — up to a maximum working height of 5.17 metres —, as a stepladder — up to a maximum working height of 3.51 metres — or as a scaffold — up to a maximum working height of 3 metres.
This ladder-scaffold, which can be used both indoors and outdoors, is an ideal option for users who need a practical solution for occasional work at height.
Technical data sheet User and maintenance manual
Ladder-scaffold for occasional work at height
Built with aluminium tubes, it features recessed steps with anti-slip ridges spaced 280 mm apart, promoting safer and more comfortable ascent and descent. The main feature of the SERIE 3N1 lies in its 1.18×0.33 metre work platform, which guarantees work at height with maximum ergonomics, safety and comfort. It is also equipped with two supports, an aluminium safety lock and adjustable nylon safety tensioners, which prevent accidental opening.

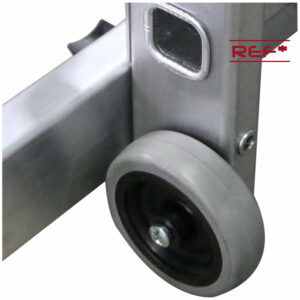

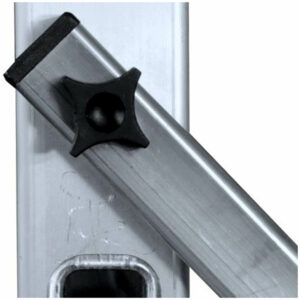

The SERIE 3N1 stands out for its ease of handling, lightness and strength. This model features an aluminium sliding system interlocked in the stiles, safety crossbars, anti-slip end caps and two stabilising bases that provide the necessary stability during use. The seven and nine-step models incorporate 80 mm diameter transport wheels for easy, agile and convenient transport.
Certified for professional use as a leaning ladder and stepladder and for non-professional use as a scaffold, this multipurpose SERIE 3N1 ladder-scaffold comes with a five-year guarantee against manufacturing defects and can support a maximum total load of 150 kg in accordance with Standard EN 131.
| REF | Steps |  |  |  |  |  |  |  |  |  | KG |
| Folded length | Height in leaning position | Max. working height | Depth | Max. working height | Max. working height | Profiles | Base width | Width with stabilising base | |||
| 3506 | 6 x 2 | 1,80 | 2,64 | 3,64 | 1,11 | 2,71 | 3,00 | 0,11 | 0,42 / 0,35 | 0,75 | 12,00 |
| 3507* | 7 x 2 | 2,08 | 3,36 | 4,36 | 1,28 | 2,97 | 3,00 | 0,11 | 0,42 / 0,35 | 0,85 | 12,80 |
| 3509* | 9 x 2 | 2,64 | 4,17 | 5,17 | 1,63 | 3,51 | 3,00 | 0,11 | 0,42 / 0,35 | 0,85 | 14,40 |
*With Ø80 mm transport wheels
