Two-section combination ladder, SERIE C2
Two-section combination ladder, SERIE C2
The two-section combination ladder from the SERIE C2 offers great versatility to the professional, allowing its use in two positions: as a leaning ladder and as a stepladder. This model is especially recommended for workers who need to adapt to different work environments, as it allows the height of its sections to be adjusted to access different levels and work at height with maximum stability and ergonomics. In addition, the SERIE C2 is characterised by its ease of handling, strength, lightness and compact design, ensuring convenient and simple storage and transport.
Technical data sheet User and maintenance manual
Sturdy and innovative combination ladder
Built with aluminium tubes, this combination ladder features recessed steps with anti-slip ridges spaced 280 mm apart, promoting safer and more comfortable ascent. The SERIE C2 is equipped with two supports and an aluminium safety lock, designed to prevent possible accidental opening or involuntary lowering of the upper section during use, guaranteeing greater stability. It also has a nylon safety strap, which reinforces its protection against unwanted opening.

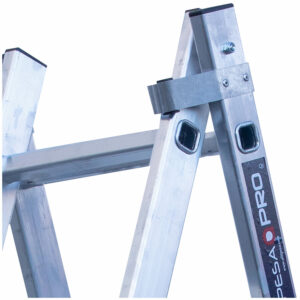

This two-section ladder features aluminium sliding guides, which allow smooth and safe adjustment of the sections during use. This model, available with seven to sixteen steps, also has anti-slip SBS end caps that prevent accidental movement on the surface and a stabilising base to provide greater stability during work at height.
The SERIE C2 two-section combination ladder is a sturdy, effective and innovative product for reaching the highest. This model comes with a five-year guarantee against manufacturing defects and can support a maximum total load of 150 kg in accordance with Standard EN 131.
| REF | Steps |  |  |  |  |  |  |  | | KG |
| Folded length | Height in leaning position | Max. working height | Depth | Max. working height | Profiles | Base width | Width with stabilising base | |||
| 3207 | 7 x 2 | 1,99 | 3,29 | 4,29 | 1,59 | 2,89 | 0,11 | 0,42 / 0,35 | 0,75 | 6,60 |
| 3209 | 9 x 2 | 2,55 | 4,41 | 5,41 | 1,98 | 3,45 | 0,11 | 0,42 / 0,35 | 0,85 | 8,90 |
| 3211 | 11 x 2 | 3,11 | 5,25 | 6,25 | 2,37 | 4,01 | 0,12 | 0,42 / 0,35 | 0,95 | 11,20 |
| 3212 | 12 x 2 | 3,39 | 5,81 | 6,81 | 2,58 | 4,29 | 0,13 | 0,42 / 0,35 | 0,95 | 12,20 |
| 3214 | 14 x 2 | 3,95 | 6,36 | 7,36 | 3,04 | 4,85 | 0,13 | 0,42 / 0,35 | 1,05 | 14,80 |
| 3216 | 16 x 2 | 4,51 | 7,77 | 8,77 | 3,46 | 5,41 | 0,15 | 0,42 / 0,35 | 1,20 | 19,20 |
