Professional mobile tower, ALU TORRE 25F

Professional mobile tower, ALU TORRE 25F - SAS guardrail

Professional mobile tower, ALU TORRE 25F - SAS guardrail (1)

The ALU TORRE 25F professional mobile tower, designed for intensive use, allows extended maintenance and repair work to be carried out at great heights, such as installing suspended ceilings, fitting large windows or stained glass, or industrial painting in warehouses or storage facilities. This model differs from the ALU TORRE 18F in its wide anti-slip phenolic platform with hatch of 2500×610 mm, which provides the space needed for two people to work simultaneously with stability and comfort.

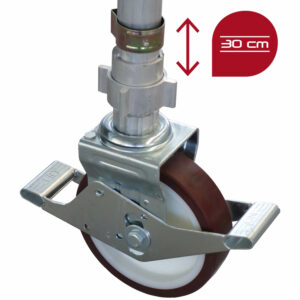

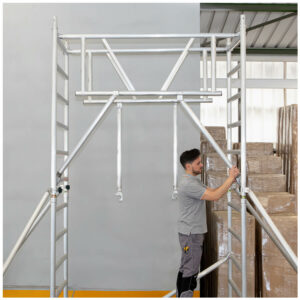

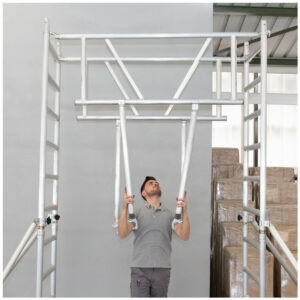

With the aim of guaranteeing the safety of operators during work at height, this professional mobile tower features SAS guardrails that allow safe assembly and disassembly from lower platforms, preventing the risk of falls from height. Available in various size options to adapt to the needs of the operator, it has 200 mm diameter transport wheels with brakes adjustable up to 30 cm in height, facilitating levelling of the structure on uneven surfaces as well as agile and quick movement between different work areas.

Technical data sheet

Categories Professional, Scaffolding and mobile towers

Easy and convenient assembly and disassembly

Made with robust 50 mm diameter aluminium tubes, the ALU TORRE 25F model allows easy and convenient assembly and disassembly using click locks on horizontals and diagonals. It also has die-cast aluminium safety hooks and counterweights, available in some configurations depending on the working height.

The ALU TORRE 25F professional mobile tower allows a maximum working height of up to 13.75 metres to be reached, comes with a five-year guarantee against manufacturing defects and can support a maximum total load of 200 kg/m² in accordance with Standard EN 1004 Class 3.

REF					KG
	Platform height	Height	Max. working height	Platform (m)
30 250 111	1,11	2,11	3,11	2,50x0,61	73,25
30 250 139	1,39	2,39	3,39	2,50x0,61	76,20
30 250 167	1,67	2,67	3,67	2,50x0,61	78,00
30 250 195	1,95	2,95	3,95	2,50x0,61	85,04
30 250 223	2,23	3,23	4,23	2,50x0,61	94,38
30 250 251	2,51	3,51	4,51	2,50x0,61	113,62
30 250 279	2,79	3,79	4,79	2,50x0,61	115,34
30 250 307	3,07	4,07	5,07	2,50x0,61	117,02
30 250 335	3,35	4,35	5,35	2,50x0,61	125,28
30 250 363	3,63	4,63	5,63	2,50x0,61	149,38
30 250 391	3,91	4,91	5,91	2,50x0,61	156,42
30 250 419	4,19	5,19	6,19	2,50x0,61	158,10
30 250 447	4,47	5,47	6,47	2,50x0,61	160,09
30 250 475	4,75	5,75	6,75	2,50x0,61	161,77
30 250 503	5,03	6,03	7,03	2,50x0,61	163,45
30 250 531	5,31	6,31	7,31	2,50x0,61	171,77
30 250 559	5,59	6,59	7,59	2,50x0,61	173,37
30 250 587	5,87	6,87	7,87	2,50x0,61	202,71
30 250 615	6,15	7,15	8,15	2,50x0,61	204,39
30 250 643	6,43	7,43	8,43	2,50x0,61	206,34
30 250 671	6,71	7,71	8,71	2,50x0,61	208,06
30 250 699	6,99	7,99	8,99	2,50x0,61	209,74
30 250 727	7,27	8,27	9,27	2,50x0,61	215,82
30 250 755	7,55	8,55	9,55	2,50x0,61	217,82
30 250 783	7,83	8,83	9,83	2,50x0,61	224,66
30 250 811	8,11	9,11	10,11	2,50x0,61	253,96
30 250 839	8,39	9,39	10,39	2,50x0,61	255,80
30 250 867	8,67	9,67	10,67	2,50x0,61	257,63
30 250 895	8,95	9,95	10,95	2,50x0,61	259,31
30 250 923	9,23	10,23	11,23	2,50x0,61	262,11
30 250 951	9,51	10,51	11,51	2,50x0,61	263,91
30 250 979	9,79	10,79	11,79	2,50x0,61	265,71
30 251 007	10,07	11,07	12,07	2,50x0,61	272,63
30 251 035	10,35	11,35	12,35	2,50x0,61	302,20
30 251 063	10,63	11,63	12,63	2,50x0,61	303,92
30 251 091	10,91	11,91	12,91	2,50x0,61	305,60
30 251 119	11,19	12,19	13,19	2,50x0,61	308,40
30 251 147	11,47	12,47	13,47	2,50x0,61	310,20
30 251 175	11,75	12,75	13,75	2,50x0,61	317,24
